In-depth Analysis of Root Causes for Falling & Cracking External Wall Insulation: Chain Hazards Triggered by Defective Material Formulas

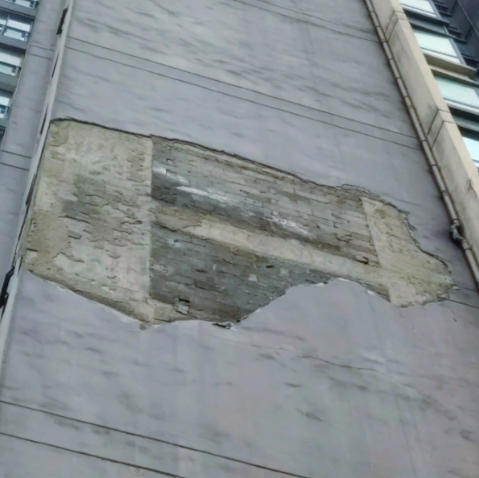

Delamination and cracking of external thermal insulation composite systems are seldom attributable to a single cause. This can be likened to a "butterfly effect" that begins at the stage of material formulation. A mere one-gram deficit of redispersible polymer powder in bonding mortar, an unexpected heavy downpour on the construction site, or insufficient expansion joints incorporated during design may all escalate into alarming insulation detachment failures years down the line. We will start our analysis from the root cause—the formulation of bonding mortar.

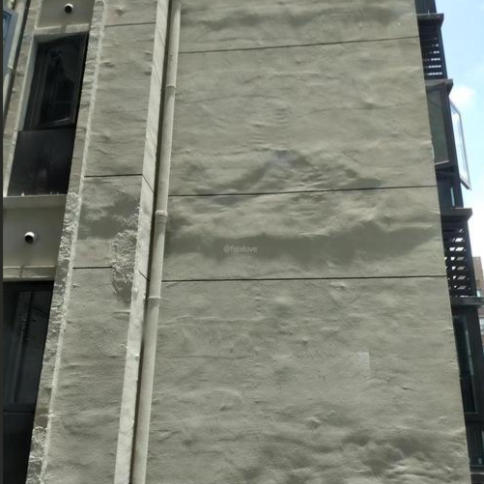

Redispersible polymer powder serves as the core functional raw material of bonding mortar. Its primary function is to improve the flexibility and bonding stability of mortar and relieve the stress generated by thermal expansion and contraction of wall substrates. To cut construction costs, some projects deliberately reduce the dosage of polymer powder, resulting in insufficient flexibility of the mortar. Building walls undergo repeated thermal expansion and contraction all year round due to seasonal temperature differences. Unable to dissipate structural stress through tiny deformations, the mortar layer will eventually tear the bonding interface, causing hollowing and cracking of the thermal insulation layer and laying hidden dangers for subsequent

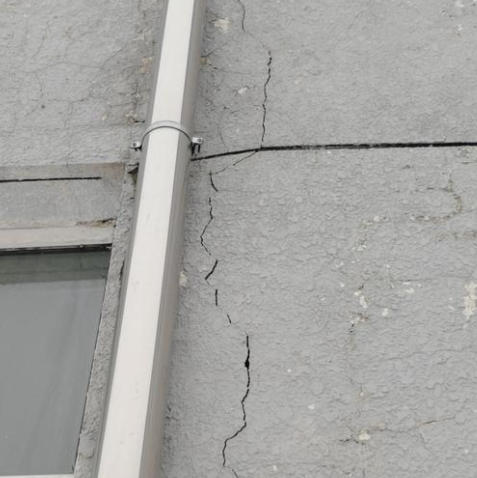

Unbalanced aggregate gradation and inferior filler adulteration are major triggers for mortar failure. High-quality bonding mortar requires a scientific blend of 40–70 mesh and 70–120 mesh quartz sand to guarantee the compactness and stability of mortar. Nevertheless, many constructors illegally add excessive stone powder and fly ash, far exceeding the industry’s optimized proportion of 30% fly ash plus 10% mineral powder. This drastically raises the mortar shrinkage rate, resulting in frequent shrinkage cracks after wall forming and compromising the integrity of the thermal insulation system.

In addition, improper dosage of Cellulose Ether can also create hidden quality risks. Cellulose ether is used to maintain the water retention and workability of mortar. An appropriate dosage can optimize construction performance. However, excessive addition will not only significantly reduce the cured strength of mortar, but also trap a large number of air bubbles inside the mortar, greatly impairing wall compactness and drastically weakening the crack resistance, impermeability and weather resistance of the insulation layer.

Apart from material defects, oversights in design and construction as well as erosion from natural environments will continuously exacerbate structural damages. Some buildings are designed without sufficient wall expansion joints to accommodate wall deformation. Severe weather such as sudden heavy rain, low temperatures and strong winds at construction sites will impair the curing performance of mortar. Coupled with long-term exposure to sunlight, rainwater and freeze-thaw cycles, the superposition of multiple factors ultimately triggers concentrated cracking and detachment of external wall thermal insulation layers.

Strict standards for material formulations must be followed and design & construction techniques optimized in external wall thermal insulation projects to eliminate hidden quality hazards at the source. Meanwhile, regular inspection and maintenance in later service stages shall be strengthened to consolidate the safety barrier of building exterior walls.
